PS5 Mainboard Fuse Repair Kit F7001 F7002 F7003 F7501 F5401 F5402 – Select Kit

Description

PS5 Mainboard Fuse Repair Kit – Board-Level Replacement Components

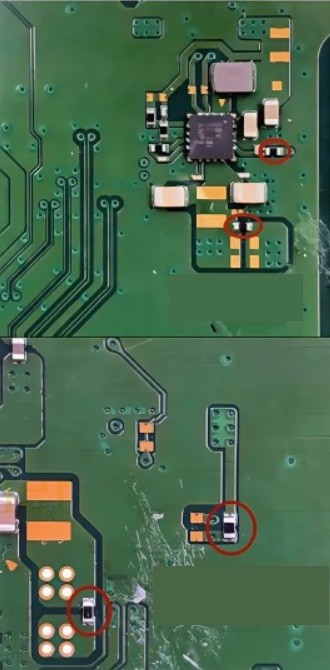

Replacement motherboard fuses for Sony PlayStation 5 board-level repair, covering the F7001, F7002, F7003, F7501, F5401 and F5402 board reference positions.

These components are intended for technicians diagnosing and repairing PS5 motherboard faults involving blown fuses, power rail faults, protection circuits, short-circuit related faults and no-power conditions.

Three kit options are available. Select the correct option before ordering.

Option 1 – 4 Piece Power Rail Kit

Includes:

• 1 × F7001
• 1 × F7002
• 1 × F7003
• 1 × F7501

Designed for the specified PS5 power rail fuse positions and suitable where one or more of these fuse locations require replacement.

Option 2 – 6 Piece Complete Fuse Kit

Includes:

• 1 × F7001
• 1 × F7002
• 1 × F7003
• 1 × F7501
• 1 × F5401
• 1 × F5402

Provides all six specified fuse components in one kit for broader PS5 motherboard fuse repair and diagnostic work.

Option 3 – F5401 & F5402 Protection Pair

Includes:

• 1 × F5401
• 1 × F5402

For repairs specifically requiring replacement of the F5401 and/or F5402 protection circuit fuse positions.

⚠️ Important Fuse Compatibility

F5401 and F5402 must not be substituted for F7001, F7002, F7003 or F7501.

Likewise, F7001, F7002, F7003 and F7501 must not be substituted for F5401 or F5402.

The supplied information specifies that these fuse groups have different voltage and amperage requirements and serve different motherboard circuits.

Always identify and verify the exact motherboard fuse reference before ordering and installation. Incorrect component selection or installation may result in additional motherboard damage.

Compatibility

• Compatible Brand: Sony
• Console: PlayStation 5
• Compatibility: PS5 Disc & Digital Editions
• Application: PS5 motherboard/mainboard repair
• Fuse References: F7001, F7002, F7003, F7501, F5401 and F5402

Installation Notice

Advanced board-level microsoldering is required.

These are precision motherboard components and are not recommended for beginners. Appropriate microsoldering equipment, diagnostic skills and board-level repair experience are required.

The existing fuse and circuit should be properly diagnosed before replacement rather than assuming that replacing a fuse alone will resolve the underlying fault.

Repair Service Available

If you would prefer professional installation and diagnosis, you can send your PlayStation 5 to K1 Tech Care for board-level repair.

• Full diagnostic service
• Professional board-level motherboard repair
• 2 Years Repair Warranty included*

Contact K1 Tech Care for repair service details.

What You Will Receive

You will receive one selected kit option:

4 Piece Power Rail Kit: F7001 + F7002 + F7003 + F7501

6 Piece Complete Fuse Kit: F7001 + F7002 + F7003 + F7501 + F5401 + F5402

F5401 & F5402 Protection Pair: F5401 + F5402

Please select the correct option before checkout.
